LC 2012 Spatial Light Modulator (transmissive)

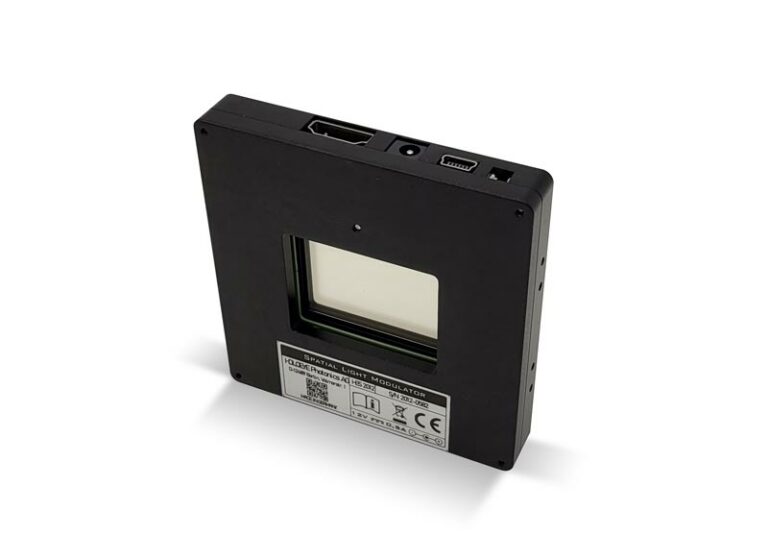

The LC 2012 is our basic Spatial Light Modulator system based on a translucent liquid crystal microdisplay with a resolution of 1024 x 768 pixel (XGA). The device is mainly intended for proof of concepts and education.
LC 2012 Spatial Light Modulator – Microdisplay Features
Display Type
Transmissive LC
Resolution
1024 x 768
Pixel Pitch
36 µm
Fill Factor
58 %
Active Area
36.9 x 27.6 mm (1.8” Diagonal)
Addressing
8 Bit (256 Grey Levels)
Signal Formats
HDMI – XGA Resolution
Input Frame Rate
60 Hz
REQUEST PRODUCT
The LC 2012 is our basic Spatial Light Modulator system based on a translucent liquid crystal microdisplay with a resolution of 1024 x 768 pixel (XGA). The device is mainly intended for proof of concepts and education.
Based on a twisted nematic (TN) liquid crystal display simply phase mostly modulation is possible as the twist always causes a coupled polarisation effect (amplitude modulation). The SLM provides a phase shift of about 2 π at 450 nm, about 1.8 π at 532 nm and around 1 π at 800 nm.
The microdisplay and drive electronics are packaged into a compact box for easy integration into optical setups. The LC 2012 is addressed using a standard HDMI interface and brightness and contrast settings can be performed using an USB interface. The LC 2012 Spatial Light Modulator can be used for phase (phase mostly) or amplitude modulation applications dependent on the configuration. The mode depends on the incident polarization and polarizer-analizer settings.

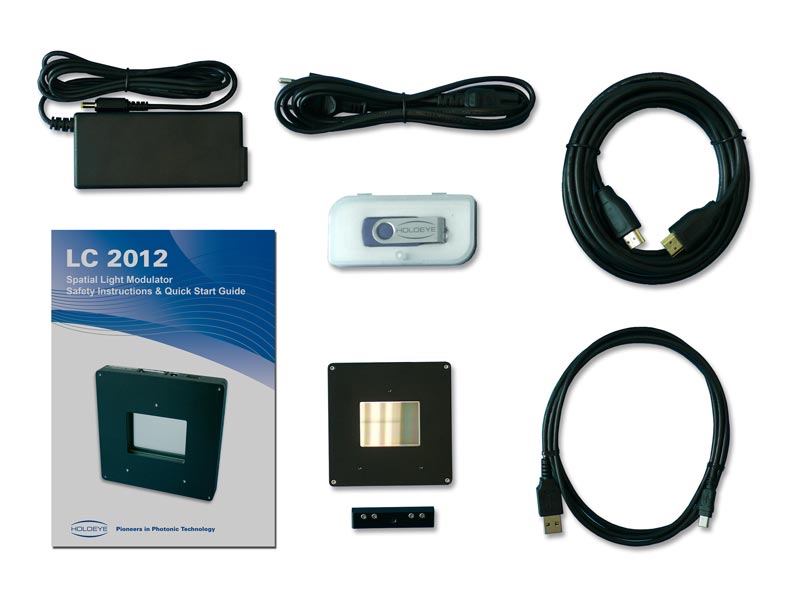

LC 2012 Spatial Light Modulator Kit – Contents:
LC 2012 SLM – Scope of Supply
- LCD Image Display Device LC 2012 (1024 x 768 Pixel)
- Power Supply
- HDMI Cable
- USB/Mini-USB Cable
- Device Mount
- Safety instructions & quick-start guide (test polarizer inside)
- USB flash drive with software package and documentation
Software Features
The LC 2012 spatial light modulator devices can simply be addressed like an external monitor using the standard DVI / HDMI interface of the graphics card. No additional software or dedicated hardware is needed to operate the SLM.

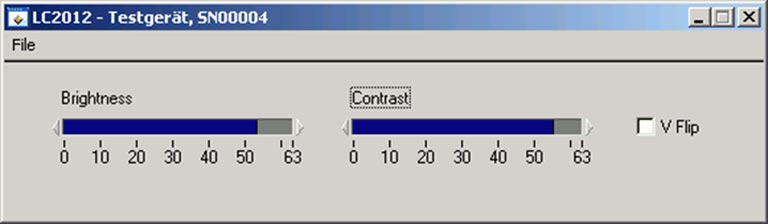

The LC 2012 SLM is delivered with a simple Configuration Manager software. The Configuration Manager can be used to change the brightness and contrast of the LC 2012 display and for vertical flipping of the image. This requires an USB connection to the LC 2012 driver.
In addition a HOLOEYE SLM Pattern Generator software is provided with the SLM:
- Computation of computer generated holograms (CGH) from user defined images
- Generation of SLM signals representing basic optical functions such as lenses, gratings, axicon and vortex functions
- Superposition of CGH’s with basic optical functions to combine functionalities
Additionally, a special SLM Slideshow Player software is included with the device. An SLM Display SDK is also available for download, providing APIs (Application Programming Interfaces) for various programming languages to display images and data/phase arrays directly on a HOLOEYE Spatial Light Modulator:
- National Instruments LabVIEW™ 2017 and later
- MathWorks MATLAB® R2009b and later
- Octave 7.2, 8.4
- Python™ 3.x
- C or C++ compiler (e. g. Microsoft Visual C++ Compiler)
