ERIS-1.1 Phase Only Spatial Light Modulator
The analog ERIS-1.1 Phase Only Spatial Light Modulator shows extreme phase stability, low latency and low crosstalk. The device features a 120 Hz mode and a 10 bit phase mode.
ERIS-1.1 Spatial Light Modulator – Microdisplay Features
Display Type
Analog
Resolution
1920 x 1200
Pixel Pitch
8.0 µm
Fill Factor
>95 %
Active Area
15.36 x 9.6 mm (0.709” Diagonal)
Addressing
256 (8-bit) or 1024 (10-bit)
Signal Formats
HDMI
Input Frame Rate
60 Hz / 120 Hz
REQUEST PRODUCT

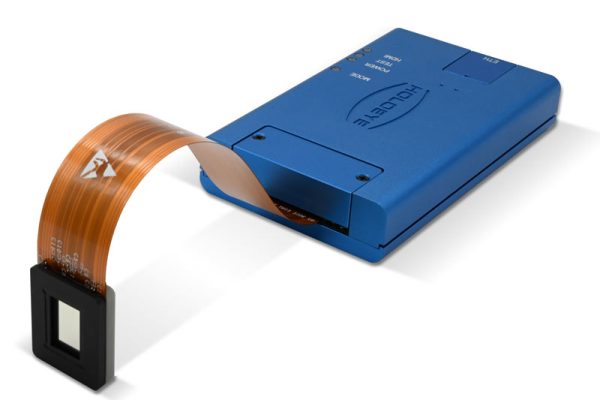

The ERIS-1.1 phase only Spatial Light Modulator is based on an 0.709″ LCOS microdisplay with a resolution of 1920×1200 pixels and 8µm pixel pitch. The SLM provides 8-bit phase levels but can also be operated in 10-bit phase mode.
The ERIS SLM is a plug & play phase modulator device and can be addressed with phase functions via standard graphics cards as an extended monitor device. Addressing can be done using the supplied Pattern Generator software or the SLM Slideshow Player software or standard image viewer software. HOLOEYE also provides an SLM Display Software Development Kit (SDK) which provides APIs (Application Programming Interface) for different programming languages.
The ERIS-1.1 driver uses an HDMI interface for addressing phase functions and an USB connection to communicate with the driver (to changing the voltage vs. gray level distribution (gamma control) and dynamic range (voltage across the LC cell) in order to calibrate the SLM for different wavelengths). Besides this the driver features a trigger sync output to synchronize the device with external devices.
Versions

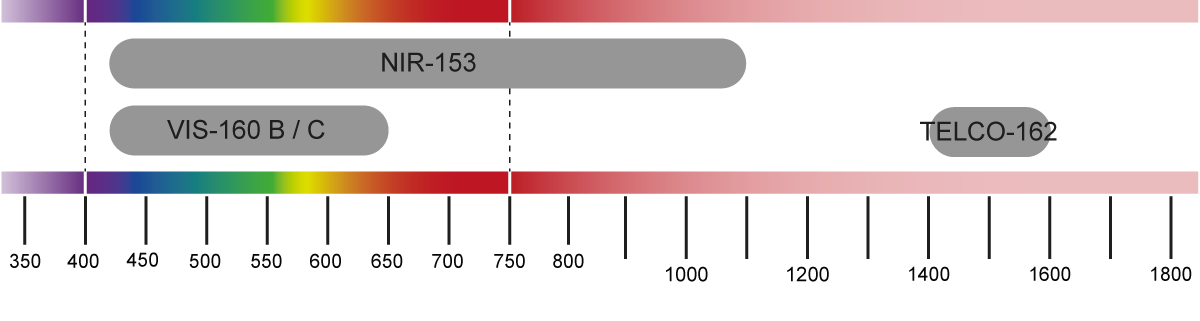

Currently we offer 3 versions of the ERIS-1.1 phase SLM. One version is optimized for the visible range, one flexible broadband version for the range of 420 – 1100 nm and one version is optimized for usage at 1550nm.
Product
Reflectivity
Max. Phase Shift
Wavelength Range
Inquiry
ERIS-1.1-VIS-160 B 85 % 3.2 Pi @ 633 nm 420 – 650 nm
ERIS-1.1-VIS-160 C 89 % 2.5 Pi @ 633 nm 420 – 650 nm
ERIS-1.1-NIR-153 76-90 % 8.5 Pi @ 450 nm
2.4 Pi @ 1064 nm 420 – 1100 nm
ERIS-1.1-TELCO-162 90 % 2.3 Pi @ 1550 nm 1400 – 1600 nm

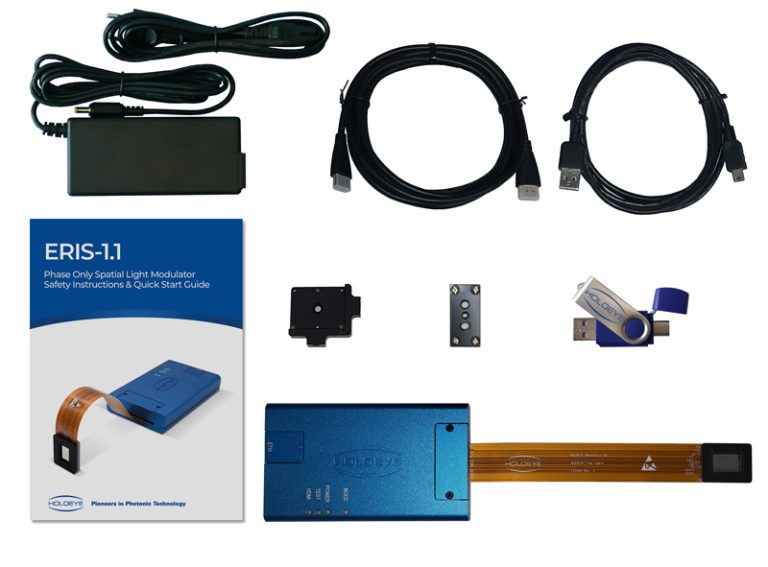

ERIS-1.1 Spatial Light Modulator Kit – Contents:
ERIS-1.1 SLM – Scope of Supply
- Phase only display incl. flex cable
- Driver unit
- Device mount
- Display mount
- Power supply + cable
- USB/mini USB cable
- HDMI cable
- Safety instructions & quick-start guide (test polarizer inside)
- USB flash drive with software package and documentation
Software Features
The ERIS-1.1 phase only modulator devices can simply be addressed like an external monitor using the standard HDMI interface of the graphics card. No additional software or dedicated hardware is needed to operate the SLM.

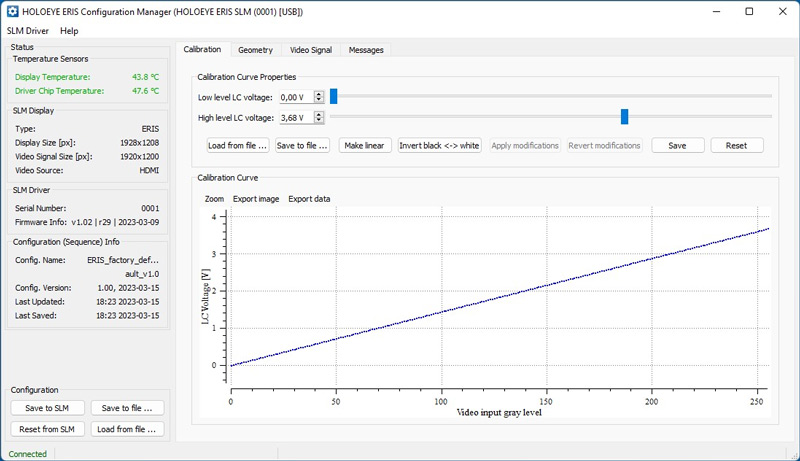

The LCOS SLM device is delivered with a Configuration Manager software. The Configuration Manager can be used to change geometrical settings and the electro-optical response by adjusting pixel voltages. An USB interface is used for these advanced calibrations.
In addition a HOLOEYE SLM Pattern Generator software is provided with the SLM:
- Computation of computer generated holograms (CGH) from user defined images
- Generation of SLM signals representing basic optical functions such as lenses, gratings, axicon and vortex functions
- Superposition of CGH’s with basic optical functions to combine functionalities
Additionally, a special SLM Slideshow Player software is included with the device. An SLM Display SDK is also available for download, providing APIs (Application Programming Interfaces) for various programming languages to display images and data/phase arrays directly on a HOLOEYE Spatial Light Modulator.
- National Instruments LabVIEW™ 2017 and later
- MathWorks MATLAB® R2009b and later
- Octave 7.2, 8.4
- Python™ 3.x
- C or C++ compiler (e. g. Microsoft Visual C++ Compiler)
